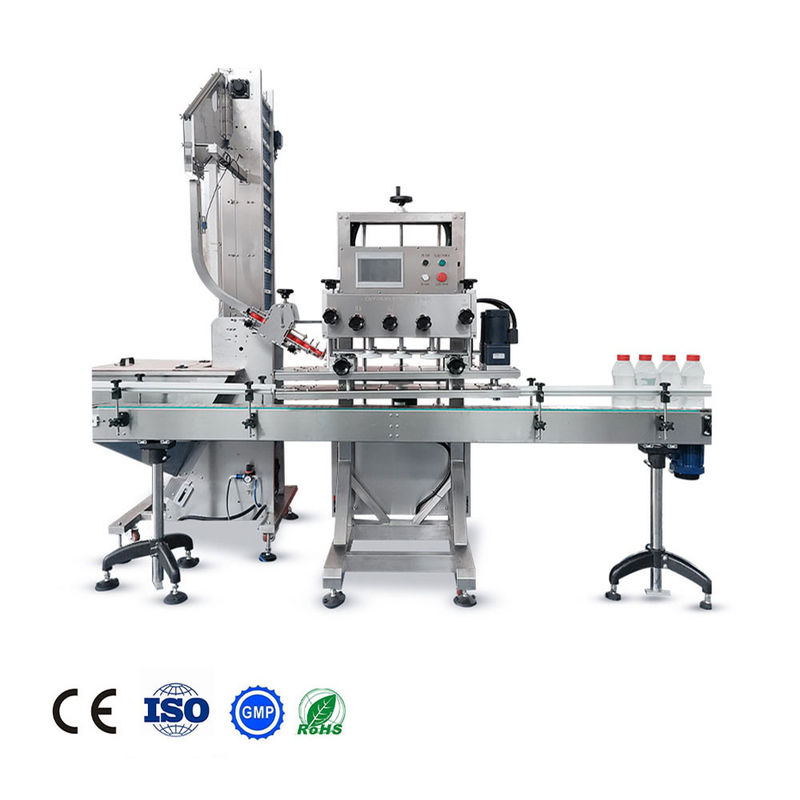

Automatic Inline Spindle Capping Machine
The inline spindle capping machine from NPACK is a versatile and fully automatic solution designed for screw-type and various other cap styles, including pump caps, trigger sprayers, screw caps, flat caps, and oval caps. It works with a wide range of bottle shapes and sizes, both plastic and glass, making it ideal for diverse production lines.
Bottles move along the conveyor while synchronized spindle wheels progressively tighten each cap, ensuring secure, consistent sealing without damaging the container or closure. For fully automated operation, the machine can be paired with cap feeding systems such as vibratory bowls or cap elevators, keeping caps continuously supplied and supporting high-speed production.
This inline spindle capping machine delivers reliable, uniform, and efficient capping, making it a key component in industries like food, beverage, cosmetics, pharmaceuticals, and chemicals, where product integrity and secure closures are essential.
Main Feature
1.“No Bottle, No Cap” Mechanism: Prevents cap waste and ensures smooth, uninterrupted production.
2.Durable Stainless Steel Construction: Sleek body with a matte finish for long-lasting performance and professional appearance.
3.Adjustable Conveyor Height: Easily aligns with other production line equipment for seamless integration.
4.High-Capacity Hopper: Specially designed to hold more caps, improving overall efficiency.
5.Quiet and Energy-Efficient: Low noise operation and minimal power consumption create a comfortable, cost-effective work environment.
6.Adjustable Bottle Height Gauge: Allows quick, precise setup for consistent and accurate capping results.
Parameter
|
1
|
Name/Model
|
NP-LC Automatic linear spindle capping machine
|
|
2
|
Capacity
|
40-150 bottle/minute (actual capacity depends on bottle and caps
|
|
3
|
Cap diameter
|
20-120mm
|
|
4
|
Bottle Height
|
40-460mm
|
|
5
|
Dimension
|
1060*896*1620mm
|
|
5
|
Voltage
|
AC 220V 50/60HZ
|
|
6
|
Power
|
1600W
|
|
7
|
Weight
|
500KG
|
|
8
|
Cap feeding system
|
Elevator Feeder
|
Vibration cap sorter
|
Product Detials
Capping Machine Components
Automatic capping machines achieve the rapid and reliable tightening of bottle caps by continuously applying torque through multiple sets of paired capping discs. Their highly efficient operation relies on the precise coordination of three core systems:
Cap Feeding System
Utilizing an elevator or a vibratory bowl—with adjustable tilt angles and vibration settings—this system works in conjunction with air jets to ensure correct cap orientation; any misaligned caps are rejected and subsequently re-sorted. The caps are conveyed via a chute, stabilized by grippers and guide tabs, and held in precise alignment, awaiting their union with the bottles.
Bottle Stabilization System
This system employs one or more sets of conveyor belts to support the bottles as they travel through the machine, thereby preventing tipping or inconsistent movement. The position of these belts can be flexibly adjusted to accommodate variations in bottle height and shape.
Capping Torque Control System
This system precisely regulates the position and contact pressure of the capping discs to apply the correct amount of torque. Some machines are equipped with clutches on the final set of capping discs to achieve even more precise torque control.
In practical application, complex calibration is typically completed by the manufacturer prior to shipment. Consequently, when users need to switch to a different bottle type during daily operations, they generally only need to perform simple adjustments to the positions of the capping discs and stabilization belts; the equipment is often furnished with markings or guides to facilitate this process.
Why Choose NPACK Inline Spindle Capping Machines?
1.Exceptional Value: Built with superior design and construction, NPACK machines offer high performance at competitive prices, thanks to our large-scale production and in-house manufacturing.
2.Durable and Reliable: Heavy-duty stainless steel ensures long-term operation and consistent performance.
3.User-Friendly Adjustments: Adjustable conveyor belts and convenient handles allow quick setup for different bottle sizes and production lines.
4.Proven Design: Continuous refinement guarantees reliable operation and resolves minor issues efficiently.
5.Versatile Cap Feeding: Compatible with a variety of cap types and feeding systems, including pump caps.
6.Customizable Options: Features like reverse spindles, motorized height adjustment, and double-belt configurations meet diverse project requirements.
7.Stable Operation: Each spindle is motor-driven for consistent torque and smooth performance.
8.Precise Control: Adjustable clamping belts, rulers, and counters ensure accurate, convenient operation.
By choosing NPACK, you gain a durable, efficient, and flexible inline spindle capping solution tailored to your production needs.
